MIC5821/5822
Micrel, Inc.
Timing Conditions
(T A = +25 ° C, Logic Levels are V DD and V SS )
V DD = 5.0V
A.
B.
C.
D.
E.
F.
G.
Minimum Data Active Time Before Clock Pulse (Data Set-Up Time) ....................................................................... 75 ns
Minimum Data Active Time After Clock Pulse (Data Hold Time) ............................................................................. 75 ns
Minimum Data Pulse Width .................................................................................................................................... 150 ns
Minimum Clock Pulse Width ................................................................................................................................... 150 ns
Minimum Time Between Clock Activation and Strobe ............................................................................................ 300 ns
Minimum Strobe Pulse Width .................................................................................................................................. 100 ns
Typical Time Between Strobe Activation and Output Transition ............................................................................. 500 ns
SERIAL DATA present at the input is transferred to the shift register on the logic “0” to logic “1” transition of the CLOCK input
pulse. On succeeding CLOCK pulses, the registers shift data information towards the SERIAL DATA OUTPUT. The SERIAL
DATA must appear at the input prior to the rising edge of the CLOCK input waveform.
Information present at any register is transferred to its respective latch when the STROBE is high (serial-to-parallel conversion).
The latches will continue to accept new data as long as the STROBE is held high. Applications where the latches are bypassed
(STROBE tied high) will require that the ENABLE input be high during serial entry.
When the ENABLE input is high, all of the output buffers are disabled (OFF) without affecting the information stored in the
latches or shift register. With the ENABLE input low, the outputs are controlled by the state of the latches.
Typical Applications

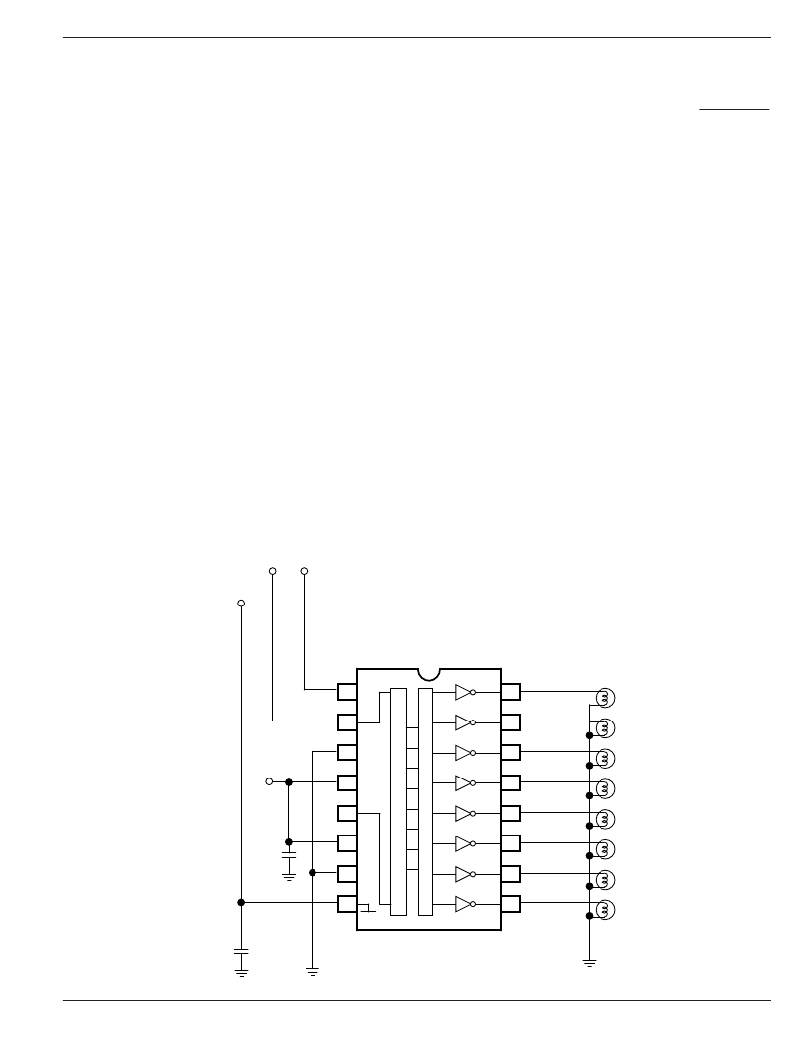

MIC5822 Level Shifting Lamp Driver with Darlington Emitters Tied to a Negative Supply
SERIAL DATA CLOCK
-9V
+5V
0.1μ
1
2
3
4
5
6
7
8
SUB
16
15
14
13
12
11
10
9
+
100μ
February 2005
5
MIC5821/5822
